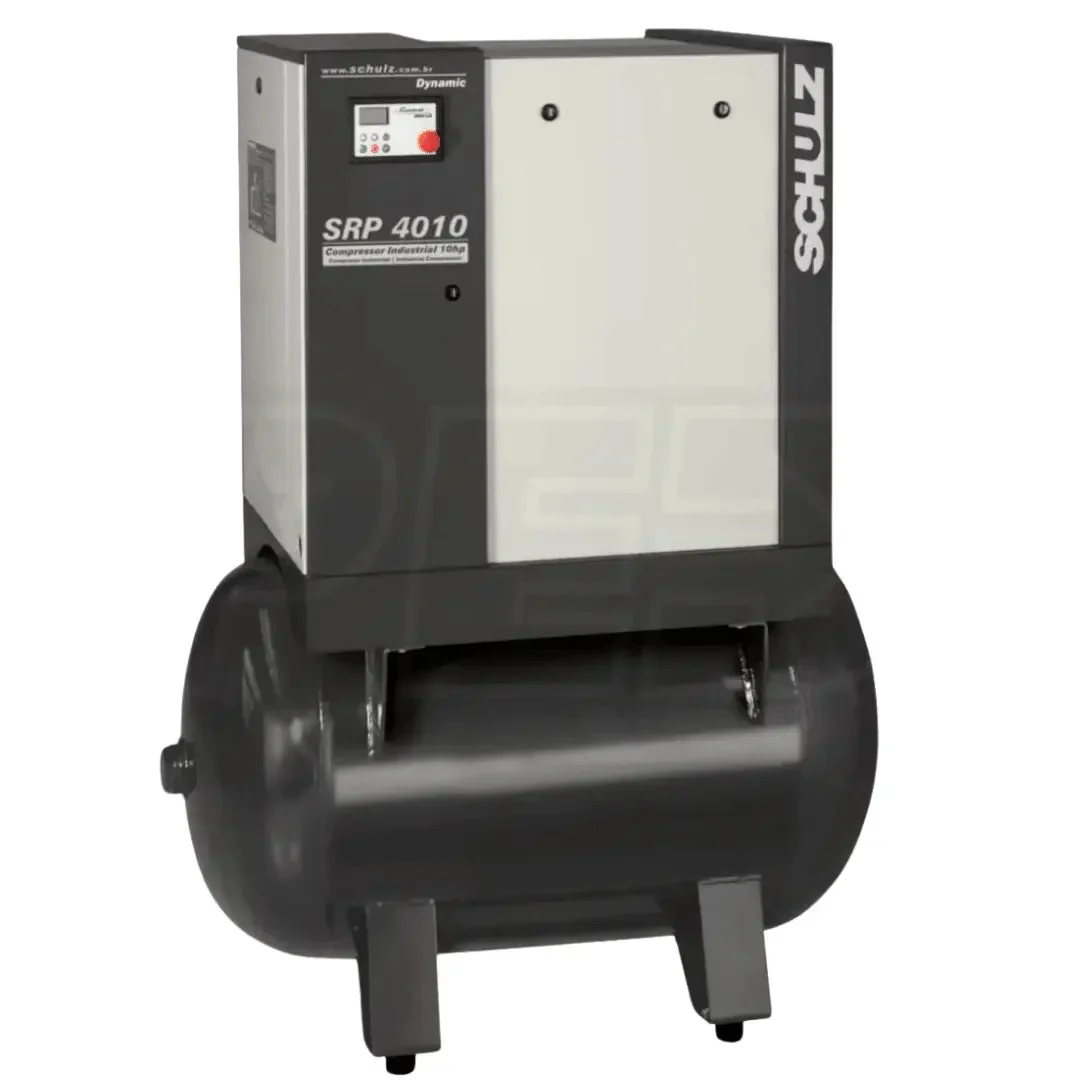

Schulz Air Compressor SRP 4010 Dynamic Rotary Screw 208-230V 3 Phase
SRP 4010 Dynamic 10-HP 120-Gallon Rotary Screw Compressor (208-230V Three Phase)
Combines technology and experience to generate efficiency and productivity
Synonymous with versatility for applications requiring high performance
2-In-1 System - Compressor & Receiver
Tank-mounted design allows for a compact foot print
Continuous 100% Duty Cycle
Runs your application efficiently 24/7
Rotary Air End
35 CFM @ 125 PSI (125 Max PSI); 100% Duty Cycle
Oil-injected, belt-driven design for efficient operation
10 HP TEFC IP55 Electric Motor (208-230V Three Phase)
Provides an efficient and reliable power source
Automatic starters with phase and sequence failure detection
24V Microprocessor Controller
Easily adjustable parameters of operation
Provides constant reading for simple monitoring
Helps simplify troubleshooting compressor issues
120-Gallon Horizontal Air Receiver (ASME Certified)
Ensures maximum safety during operation
Sound Attenuated Cabinet
Reduces noise level to 69 dB(A)
Can operate in ambient temperatures up to 113 °F,
12-Month Warranty
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 208-230 Volt AC |
| Phase | 3 Phase |
| dBA | 69 |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 10 |
Pump
| CFM | 35 |
| CFM Rated @ | 125 PSI |
| Pump Material | Aluminum |
| Max PSI | 125 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Rotary |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Duty Cycle | 100% |
Tank
| Tank Size | 120 Gallons |
| Tank Included | Yes |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
Overview
| Weight | 613 Pounds |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 58.5 Inches |
| Product Width | 27.6 Inches |
| Product Height | 39.8 Inches |
| Power Type | Electric |
| UPC | 7909480019744 |
