BelAire Air Compressor 418VL Elite Iron Series 7.5 HP 80 Gallon Two Stage 230V Single Phase

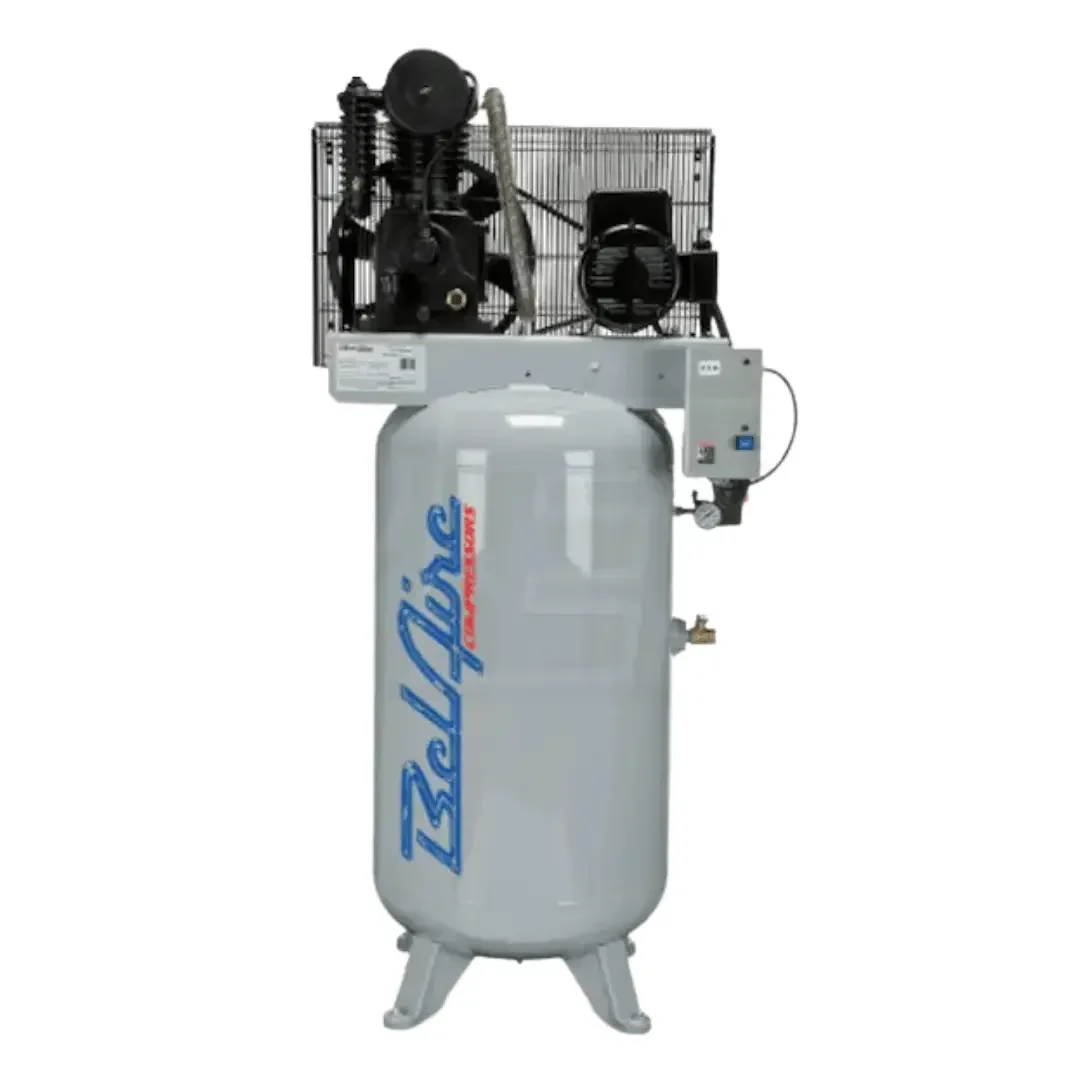

BelAire 418VL Elite Iron Series 7.5-HP 80-Gallon Two-Stage Cast Iron Air Compressor (208-230V 1-Phase)
The BelAire 418VL Elite Iron Series 7.5-HP 80-Gallon Two-Stage Cast Iron Air Compressor is a high-performance, Single Phase compressor designed for demanding industrial and commercial applications. It features a robust 7.5-horsepower motor operating on 208-230V Single Phase power, delivering 23 CFM at 100 PSI and 21 CFM at 175 PSI, with a maximum pressure of 175 PSI. Its 80-gallon vertical ASME-certified tank provides ample air storage capacity, making it suitable for continuous operation and multiple simultaneous users.
The compressor is equipped with a solid cast iron two-stage pump, ensuring durability and long service life. Operating at a low 900 RPM, the pump reduces wear and tear, contributing to quieter operation and extended lifespan. The unit includes a magnetic starter for reliable motor protection and smooth startups. Safety is enhanced with a fully enclosed belt guard that protects both the belt and the operator during operation.
Product Features
- Solid Cast Iron 2 Stage Pump
- Delivers 18 CFM at 100 PSI, 16 CFM at 175 PSI
- Rugged components provide long-lasting dependability
- Automotive-Style Rod Bearings & Wrist Pins
- Smoother running & more durable
- Start / Stop Pressure Switch Controls
- Save time & energy
- ASME Tank & Safety Valve
- 80 gallon air reserve for big jobs or multiple users
- 3/4" air outlet; 175 PSI maximum pressure
- 2 Year Bumper To Bumper Factory Warranty
- No additional purchase necessary
- Fully Enclosed Belt Guard
- Protects the belt & the operator
- Manual Air Tank Drain
- Makes tank simple to maintain
- 208 Volt Or 230 Volt Single Phase Power
- Easily wires into your 208V-1 or 230V-1 system
- CPXHT25 dryer recommended (not included)
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 208-230 Volt AC |
| Phase | Single Phase |
| Magnetic Starter | Yes |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 7.5 |
Pump
| CFM | 23 |
| CFM Rated @ | 100 PSI |
| Pump Material | Solid Cast Iron |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubrication |
| Pump Low Oil Shut-off | No |
Tank
| Tank Size | 80 Gallons |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Vertical |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | No |
Overview
| Weight | 600 Pounds |
| Certification | ASME |
| Consumer Warranty | 2 Year |
| Commercial Warranty | 2 Year |
| Product Length | 37 Inches |
| Product Width | 24 Inches |
| Product Height | 72 Inches |
| Power Type | Electric |
